MapReduce

• MapReduce is a distributed computing framework for processing large datasets.
• A map function processes a key/value input and outputs intermediate key/value pairs.
• A reduce function merges all intermediate values associated with the same intermediate key.

Programming Model

• The user provides the Map and Reduce functions.
• The MapReduce library groups all intermediate values associated with the same intermediate key.
• map: (k1, v1) --> list(k2, v2)
• reduce: (k2, list(v2)) -> list(v2)
• The input keys and values are in a different domain from the output keys and values.
• The intermediate key/value pairs are in the same domain as the output keys and values.

Word Counting With MapReduce

The below pseudo-code block shows how the MapReduce framework can be used to count the number of words in various documents.

# The key is the doc_name.
# The value is the doc_contents.
# The intermediate result is (word, 1).
# The map function is run on multiple documents.
# We will get a large number of (word, 1) pairs.
Map(String doc_name, String doc_contents):
	for each word in doc_contents:
		EmitIntermediate(w, "1")

# At this point, the MapReduce framework will aggregate
# all pairs with the same key. For example, the Reduce
# will run on the following inputs -
# (w1, [1, 1, ...]), (w2, [1, 1, ...]), (w3, [1, 1, ...])

# The input is going to be (word, [1, 1, ... 1]).
# The output will be count (number of times the word is seen).
Reduce(String word, Iterator counts):
	return sum(counts)

# The reduce function will run on every aggregate created
# by the framework, and each run will produce a single number.
# The sum of all the outputs of the reduce functions will give us
# the total number of words in various documents.

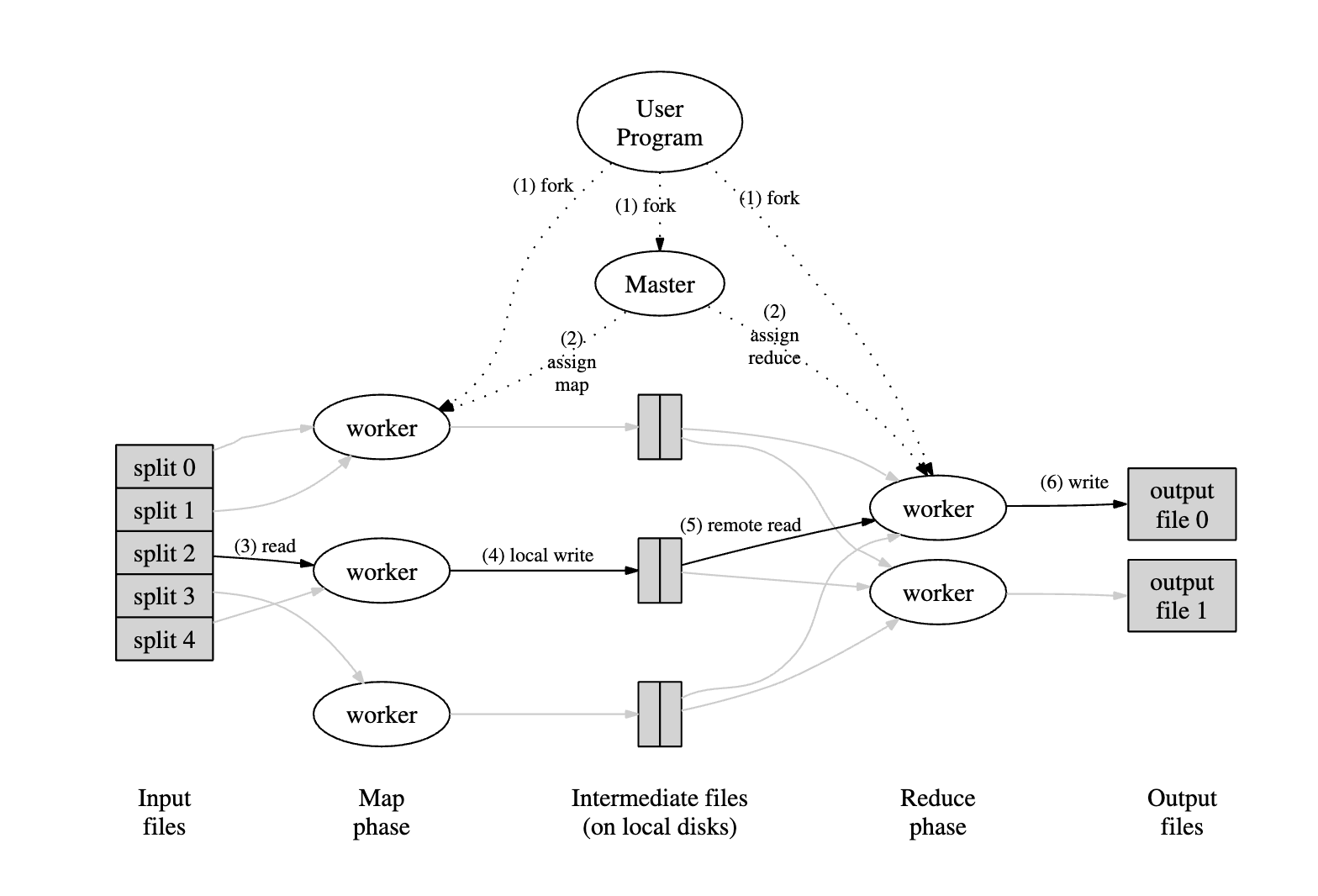

Implementation

• STEP 1: The MapReduce library splits the input into M splits.
  • One of these pieces is called the Master, which assigns work to the other splits (Workers).
  • There are M map tasks and R reduce tasks. An idle worker executes either a map or a reduce task.
• STEP 2: A map worker parses key-value pairs from the input and executes the map function.
  • The intermediate key value pairs are buffered and periodically written to disk.
  • The master can access the disk and send data to idle workers to execute the reduce function.
• STEP 3: The reduced worker uses an RPC to retrieve data from the disk.
  • The worker sorts the intermediate key/value pairs to group all instances of the same key together. This is fed to the reduce function.
  • The output of the reduce functions is appended to the final output file.
• STEP 4: There will be one output file per reduce task.
  • Typically, these files are then sent through another MapReduce operation.

References

1. MapReduce Paper
